Casa ProdottiLuci protette contro le esplosioni dell'allarme

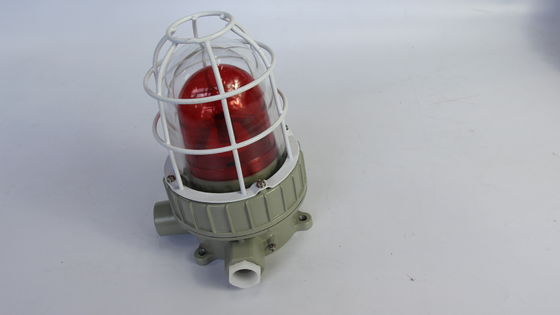

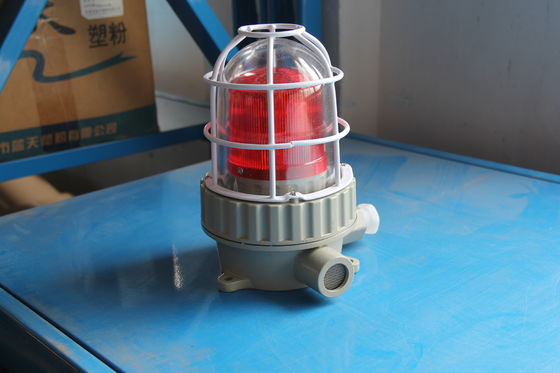

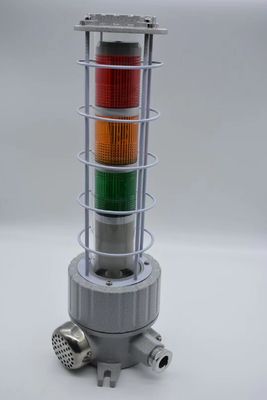

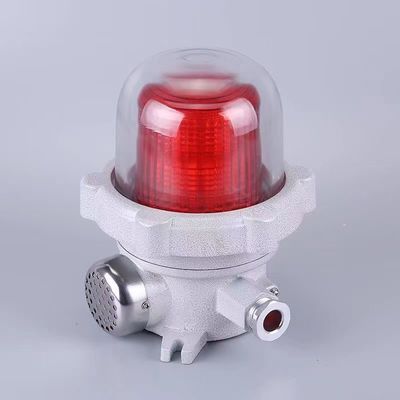

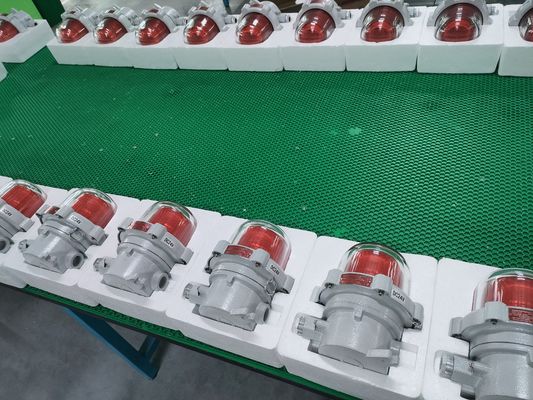

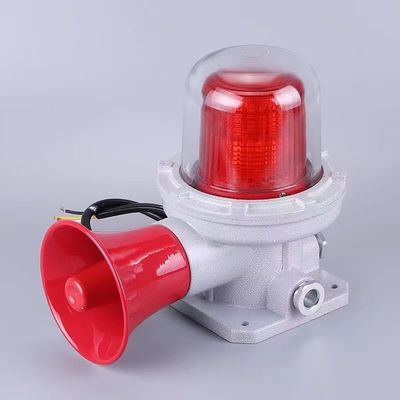

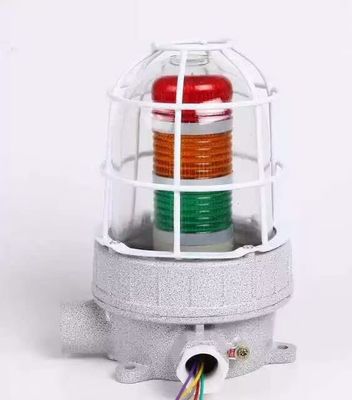

Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm 5-40W 180DB with 150 times/min

Certificazione
La CINA crown extra lighting co. ltd Certificazioni
La CINA crown extra lighting co. ltd Certificazioni
Sono ora online in chat

Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm 5-40W 180DB with 150 times/min

Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min
Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min

Grande immagine :  Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm 5-40W 180DB with 150 times/min

Dettagli:
Luogo di origine: Jiangsu, Cina
Marca: Crown Extra
Certificazione: ATEX,CE,ROHS,CNEX,ISO9001
Numero di modello: Gyj
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1pc
Prezzo: usd 19-83 per pc
Imballaggi particolari: Cartone 、 scatola di legno 、 pallet
Tempi di consegna: 15 giorni lavorativi
Termini di pagamento: T/t
Capacità di alimentazione: 50000pcs/mese

Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm 5-40W 180DB with 150 times/min

descrizione
Marca: Corona extra Modello: Gyj
Tipo: Alarme a luce led a prova di esplosione, segnale acustico e visivo/BBJ Voltaggio: 220VAC 50Hz, 24 VDC
Decibel: 120-180db Frequenza lampeggiante: 150 volte/min
Colore: Rosso, giallo, blu, verde Certificato: CNEX, EX, IP66, IEC, IECEX
Montaggio: Soffitto
Evidenziare:

waterproof explosion proof LED alarm light

,

180DB explosion proof visual alarm

,

5-40W explosion proof audible alarm

Waterproof Explosion-Proof Led Light Alarm Audible And Visual Alarm 5-40W 180DB with 150 times/min



BBJ Series



Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min 0

Features
1. Aluminium alloy fitted with cooling fins for better heat dissipation
2. Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
3. Saves in energy, maintenance and installation costs
4. Big horn for smooth, sonorous sound,spread further


Applications
A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Areas with high energy costs



Standard Materials
Housing: Die-casting aluminum/Stainless steel
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001





Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min 1

Technical Data
Ex Marking
II 2GD Ex d e IIC T6 Gb/DIP A21 TA, T6
Classification
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
Input Voltage
AC220-230V/DC24V/ DC36V
IP Degree IP65
Corrosion Resistant
WF1
Power
5-10W; 5W; 40W; 5W
Sound Strength
90; 120; 180; 120
Flash Frequency

150Times/min

Color
Red, Yellow, Blue, Green
Emergency start time
<0.3s

 Conduit Entries

G 3/4"
Mounting Styles
Base; Stanchion
Net Weight
1.8kg; 2.7kg; 3.7kg; 2.5kg



Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min 2

Waterproof Explosion Proof Led Light Alarm Audible And Visual Alarm  5-40W 180DB with 150 times/min 3
