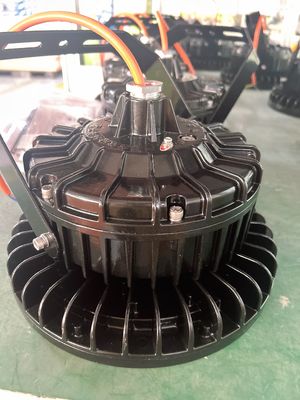

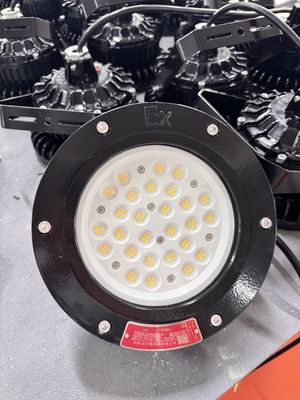

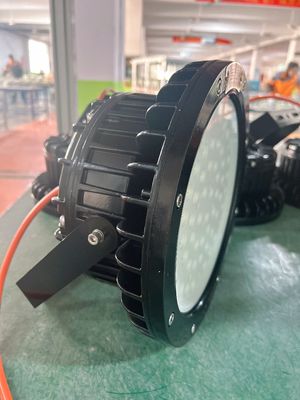

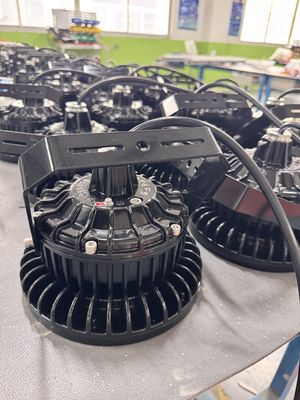

Factory direct 100w LED high bay explosion proof light ATEX IP66 explosion-proof light WF2 outdoor Zone 21 Zone 22
Features:
1. Zone 2, Zone 21&22
2. Aluminium alloy fitted with cooling fins for better heat dissipation
3.Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
4.Multi-mounting arrangements to suit any lighting layout
5.Wide range of light sources and wattages to meet specifiers' needs
6.Saves in energy, maintenance and installation costs
7.Instant, bright illumination Instant, bright illumination
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
Standard Materials
| Housing: |
Die-casting aluminum |
| Exterior: |
Stainless steel |
| Globe: |
Tempered glass |
| Gasket: |
Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
Electrical Data
| Ex Marking |
Ex nR e mb IIC T5 Gc/Ex tD A21 IP66 T80℃ |
| Classification |
Group II, Catogory 2 GD; |
| IP Degree |
IP65 |
| Corrosion Resistant |
WF2 |
| Input Voltage |
90-305VAC/50~60HZ or 24V DC |
| Power Factor |
0.95 |
| Conduit Entries |
G 3/4" |
| Terminal |
≤2.5mm2 |
| Mounting Styles |
Pendant; Ceiling; Wall Bracket;Stanchion |
Ordering Information
| Model NO. |
GYD8301 |
GYD8302 |
| Power Supply |
50Watt |
100Watt |
| Lumen |
5500Lm |
11000Lm |
| Light Source |
LED |
LED |
| Fixture Weight |
3kg |
4kg |
Dimension [mm]
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
