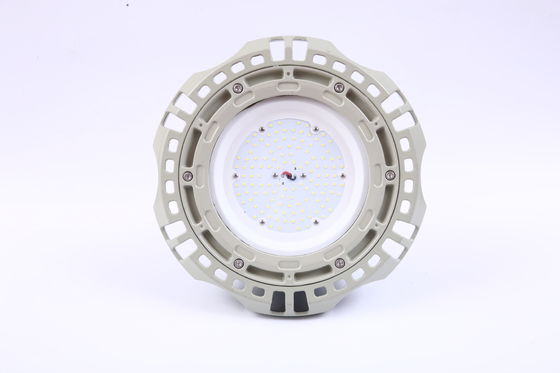

Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use

Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use

Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use
Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use

Grande immagine :  Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use

Dettagli:
Luogo di origine: Jiangsu, Cina
Marca: Crown Extra
Certificazione: ATEX,CE,ROHS,CNEX,ISO9001
Numero di modello: GYD810
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1pc
Prezzo: USD69-120 per pc
Imballaggi particolari: Cartone 、 scatola di legno 、 pallet
Tempi di consegna: 15 giorni lavorativi
Termini di pagamento: T/t
Capacità di alimentazione: 50000pcs/mese

Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use

descrizione
Nome prodotto: Luce a prova di esplosione GYD810 Modello: GYD810
Voltaggio: AC 100-277V, 50Hz/60Hz: 24/36VDC Efficienza: 135lm/w
CRI: RA: ≥80 CCT: 3000/4000/5000/5700K
Certificato: CNEX, EX, IP66, IEC, IECEX Montaggio: Parentesi. Tettiling, supporto alla flangia, supporto a parete

Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use

GYD810 Series

Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use 0



Features:

Zone 2, Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications

Isolated LED compartment reducestemperature within driver housing

Multi choice of beamangle for 60° 90° 120°







Applications

Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations





Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber





Certifications
ATEX
CNEX
CE
RoHS
ISO9001





Rated voltage 100-277VAC, 50-60Hz
Power factor >0.95
THD <20%
Power consumption [W] 30-70W, 100-120w,150-200w,240w
Colour rendering [CRI] 70 (±2)
Colour temperature [K] 6000-6500
Luminaire efficiency[Lm/W] 115-130
Beam angle 120° (45°, 90° is optional)
Degree of protection IP66
Cable entry G 3/4”
Weight [kg] 5,6.5,8.5,9.5
Terminal ≤2.5 mm²
Mounting Styles Ceiling; Wall Bracket; Pendant



GYD810 Series



Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use 1

Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use 2





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.









Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use 3



Explosion Proof High Bay Light 50W/100W/150W/200W Aluminum 5000K Industrial Factory Garage Use 4
