High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights
High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

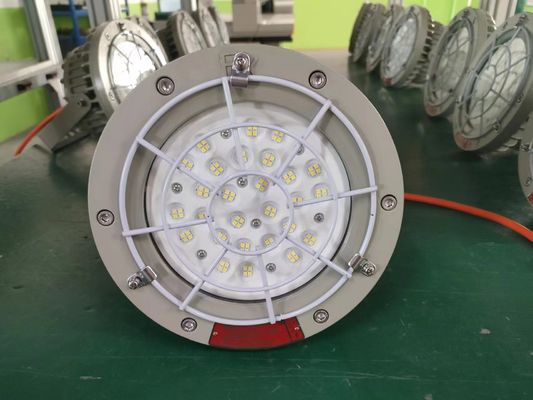

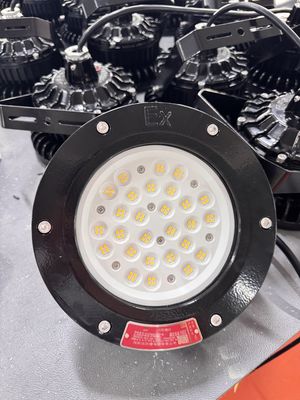

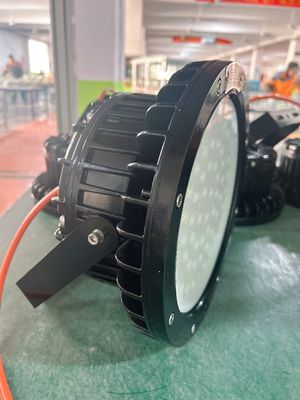

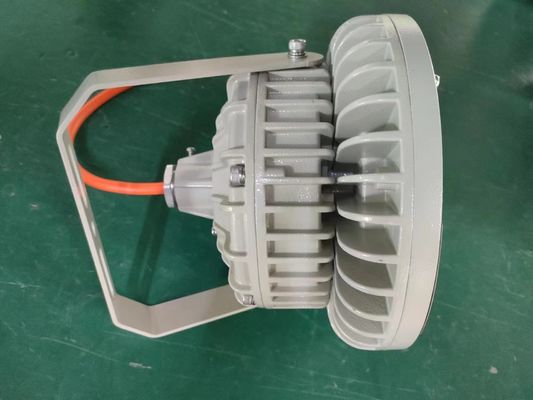

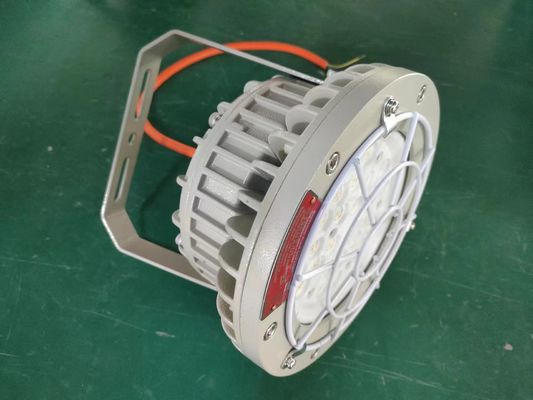

Grande immagine :  High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

Dettagli:
Luogo di origine: Jiangsu, Cina
Marca: Crown Extra
Certificazione: ATEX,CE,ROHS,CNEX,ISO9001
Numero di modello: GYD830
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1pc
Prezzo: USD135-180 per pc
Imballaggi particolari: Cartone 、 scatola di legno 、 pallet
Tempi di consegna: 15 giorni lavorativi
Termini di pagamento: T/t
Capacità di alimentazione: 50000pcs/mese

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

descrizione
Marca: Corona extra Nome prodotto: Lumi a prova di esplosione GYD830
Materiale: Lega di alluminio CRI: RA: ≥80
Efficienza: 120lm/w Certificato: Parentesi. Tettiling, supporto alla flangia, supporto a parete
CCT: 3000/4000/5000/5700K Voltaggio: AC 100-277V, 50Hz/60Hz: 24/36VDC

High pressure casting aluminum alloy shell WF2 outdoor anti-corrosion explosion proof high bay lights





GYD830 Series



Features:

Zone 2, Zone 21&22

Aluminium alloy fitted with cooling fins for better heat dissipation
Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
Multi-mounting arrangements to suit any lighting layout
Wide range of light sources and wattages to meet specifiers' needs
Saves in energy, maintenance and installation costs
Instant, bright illumination Instant, bright illumination







Applications

Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations





Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber





Certifications
ATEX
CNEX
CE
RoHS
ISO9001



Electrical Data
Ex Marking
Ex nR e mb IIC T5 Gc/Ex tD A21 IP66 T80
Classification
Group II, Catogory 2 GD;
IP Degree
IP65
Corrosion Resistant
WF2
Input Voltage
90-305VAC/50~60HZ or 24V DC
Power Factor
0.95
Conduit Entries
G 3/4"
Terminal
≤2.5mm2
Mounting Styles
Pendant; Ceiling; Wall Bracket;Stanchion





Ordering Information
Model NO. GYD8301 GYD8302
Power Supply 50Watt 100Watt
Lumen 5500Lm 11000Lm
Light Source LED LED
Fixture Weight 3kg 4kg



High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights 0

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights 1





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.













High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights 2
